O1S-AG811T

8K/48Gbps HDMI 2.1 Test Pattern Generator & Analyzer

O1S-AG811T HDMI 2.1 48Gbps Generator/Analyzer is a powerful and versatile HDMI 2.1 generator and analyzer designed to streamline installation and testing of HDMI 2.1 systems. Fully supporting HDMI 2.1 bandwidth and HDCP 2.3, this all-in-one toolkit simplifies setup with both signal generation and analysis capabilities.

Compact and portable, the O1S-AG811T features a built-in rechargeable battery, a wide range of video test patterns, and an intuitive 7.0″ touch screen interface. In addition to local control, the device also supports web-based control, allowing users to remotely operate and configure the unit through a standard web browser without installing additional software—ideal for rack-mounted installations or remote testing environments.

The O1S-AG811T supports USB firmware updates, along with advanced functions like EDID & analysis, loop testing, and 8-channel LPCM audio output with selectable sample rates. One standout feature is the device’s HDMI input bypass, which allows users to quickly verify video sources either on a connected display or directly on the built-in touch panel.

With its robust feature set and affordable price point, the O1S-AG811T is one of the most cost-effective HDMI 2.1 testing solutions available—perfect for installers, integrators, and engineers looking to simplify HDMI deployments.

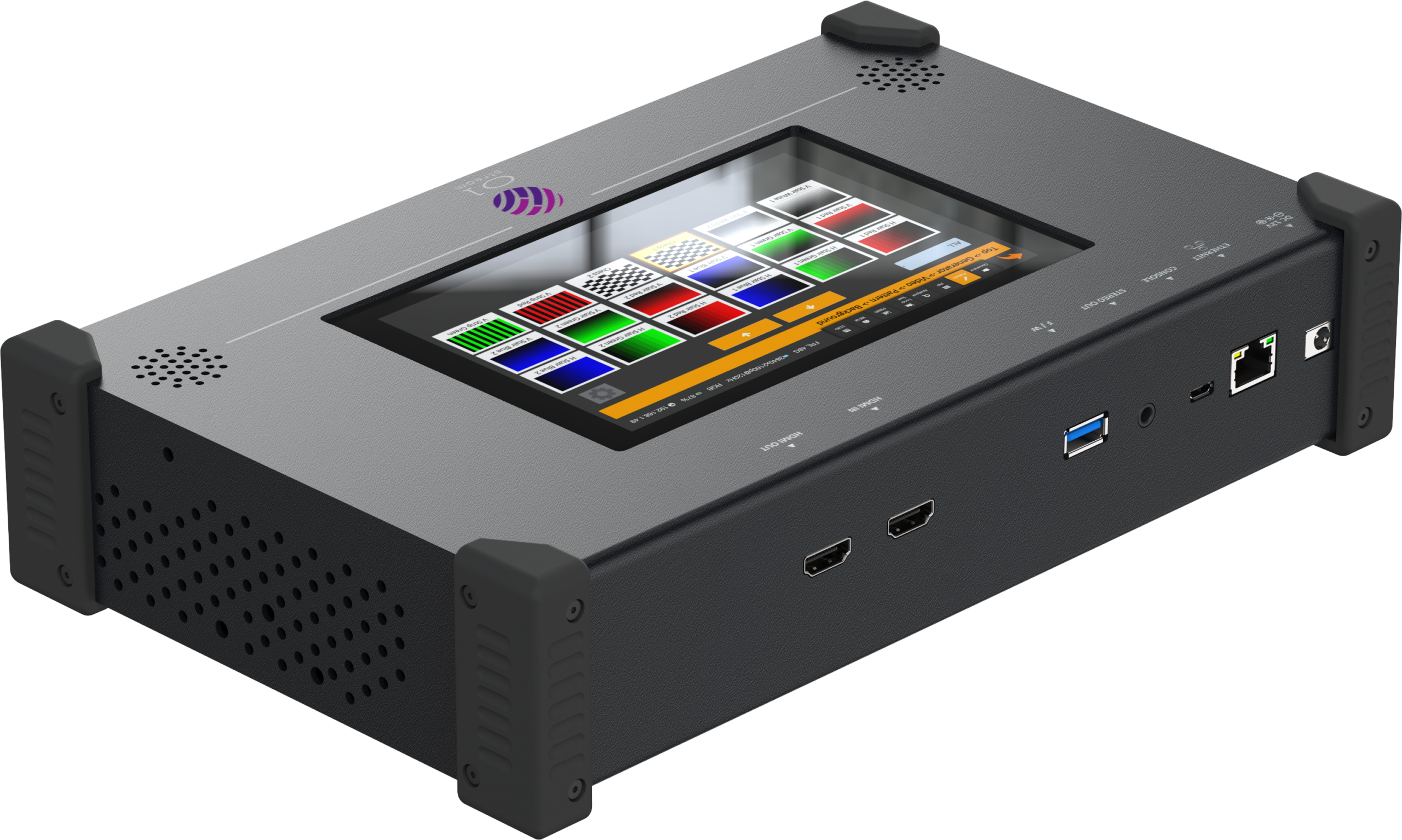

Rear Perspective

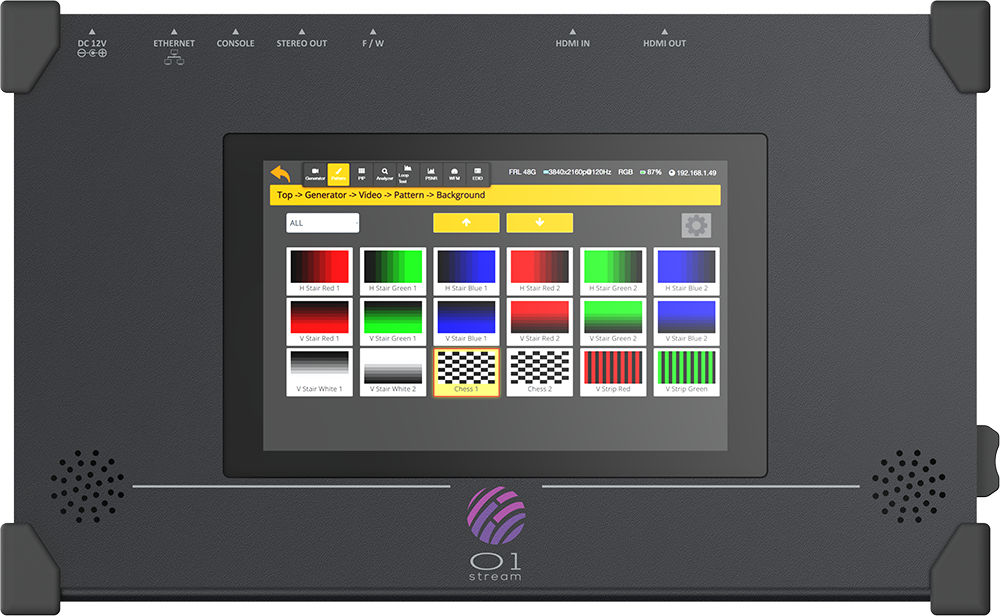

Top View
Rear View

FEATURES

  • Supports video resolution outputs up to 8K@30 4:4:4 8bit & 4K2K 120Hz
  • Both HDMI input and output support up to HDMI 2.1
  • Supports PSNR and SSIM measurement at 4K/60 for AVoIP systems
  • Supports video and audio latency measurement, including A/V sync, for AVoIP and other HDMI transport systems
  • Supports video waveform monitoring up to 8K/30 resolution
  • Supports web-based control and API protocol integration
  • Supports detailed video timing diagram and format analysis, including parsing of standard AVI InfoFrames
  • Built-in motion video patterns
  • HDCP 1.4 & 2.3 compliant
  • 7” Capacitive Touch Screen(1920×1200)
  • Supports mouse control
  • Supports user control device through Ethernet
  • Firmware update through USB Flash Drive
  • Embedded Linux kernel system with unlimited expandability
  • Scrambler supported for videos over 340MHz output wise
  • Supports HDMI loop through function
  • HDCP test allow verify HDCP of HDMI source and transmit HDCP encrypted video
  • Supports EDID Analysis
  • 2 Internal Speakers
  • Qualified physical layer performance to ensure the best compatibility

PACKAGE CONTENTS

  • 1x O1S-AG811T
  • 1x DC 12V power supply
  • 1x User Manual




Why Choose O1Stream?

↘ HDMI 2.1 provides sustained reliability and compatibility for emergent AV standards.
↘ Seamless integration with 1G Ethernet switches eliminates costly upgrades.
↘ Unified AV and data transmission improves efficiency.
↘ Supports USB 2.0/3.0 for compatibility with modern peripherals.
↘ Adaptive advanced proprietary video codec compression optimizes network performance.

**：PSNR measurement is based on this ⇒ sophisticated Pattern.
