O1S-AGS11

O1Stream WAN Emulator - Professional Edition

T

he O1S-AGS11 12G/6G/3G/HD/SD-SDI Pattern Generator is an advanced SDI pattern generator that offers support for multiple formats (12G/6G/3G/HD/SD) and various patterns. In addition to the classic still and moving video test patterns, the unit now includes a dynamic Circular Zone Plate (CZP) with selectable static phase or animated ring sweep, a smooth 0–255 luma Ramp, a redesigned Multi-Burst module, a Crosshatch convergence grid, an 8-step Gray Steps staircase, an auto-walking Sequence mode, and a fully-controllable Bounce Square overlay (independent colour, width, height, horizontal speed and vertical speed). Two selectable boot Splash logos let the customer pick the start-up branding. The unit also supports embedded SMPTE-291M audio (up to 8 channels of AES compliant audio at a 48 kHz sample rate), seven user-writable presets plus a scratch “Save Current” slot, and a USB-CDC virtual COM port that exposes the same control set as the front panel for host-application automation. It is equipped with four buttons, a rotary switch, an LCD screen for easy control, and a built-in rechargeable battery for extended operation. This device provides a cost-effective solution for calibrating and testing SDI-enabled video devices and displays.

O1S-AGS11 MANUAL

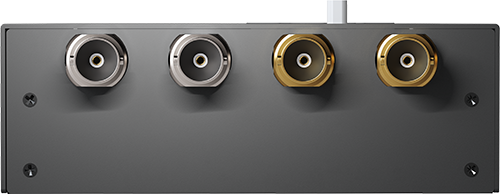

Rear Perspective

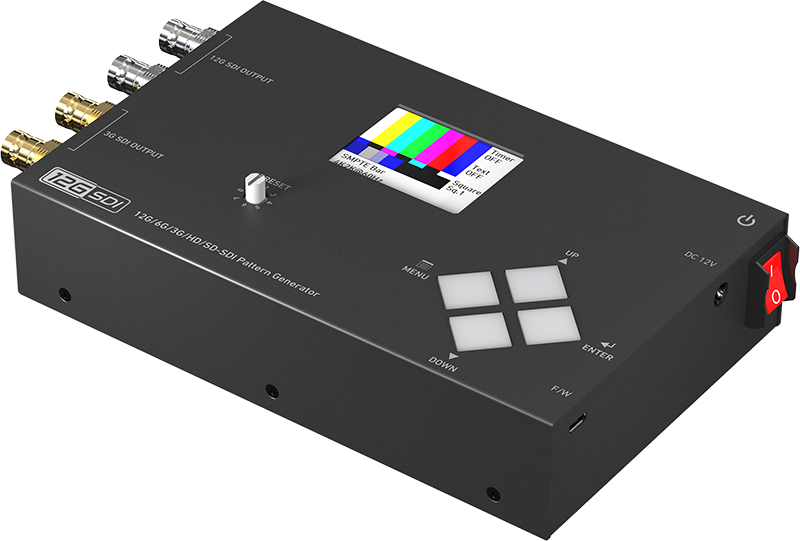

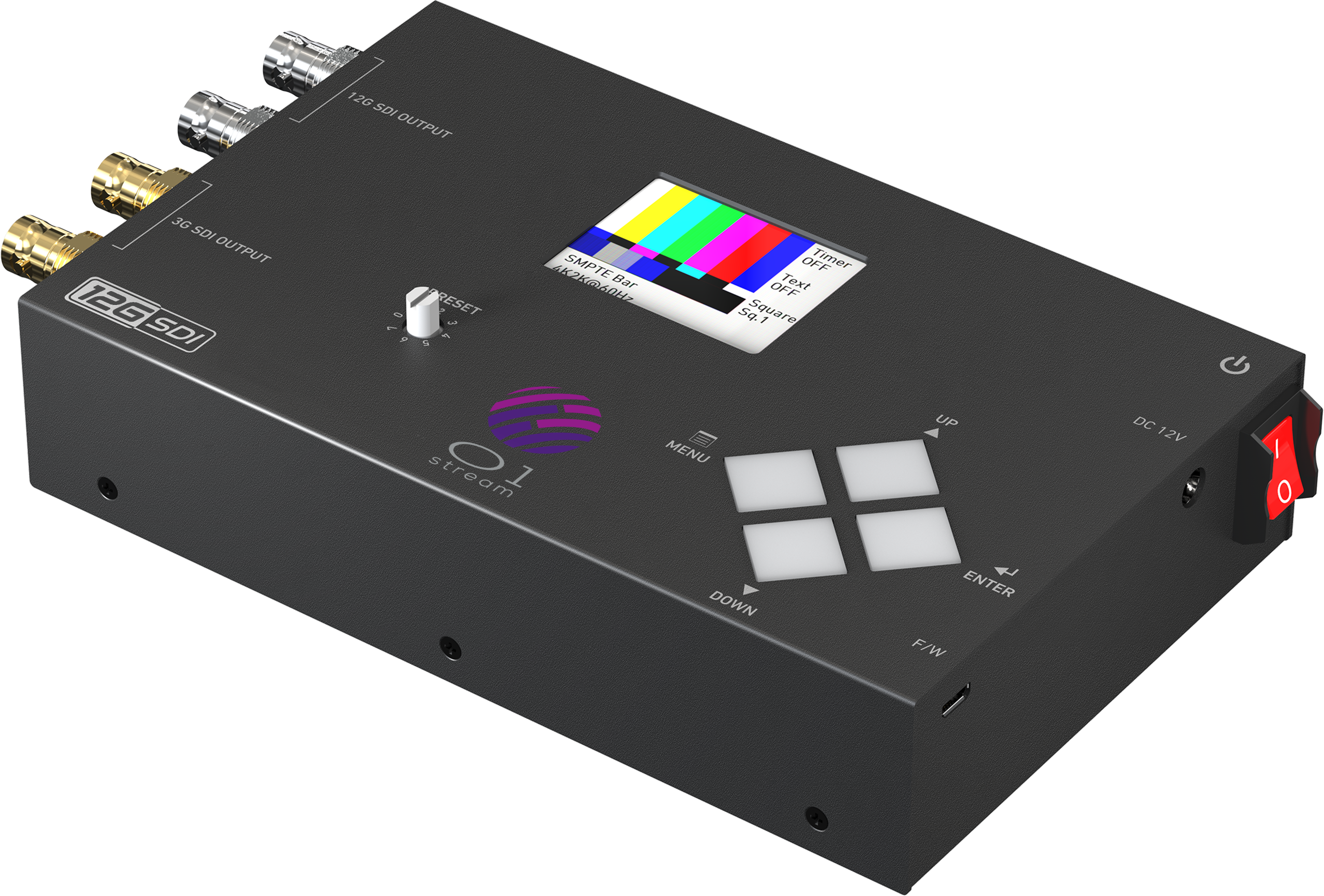

Rear View

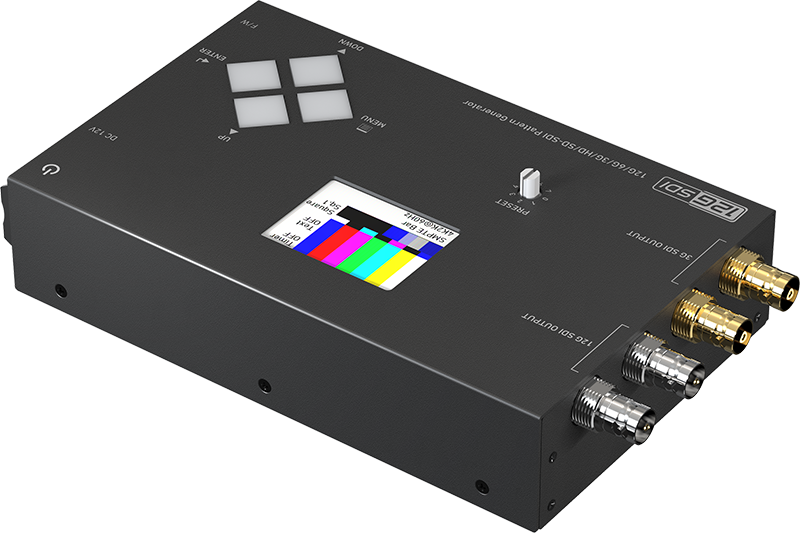

Front Perspective

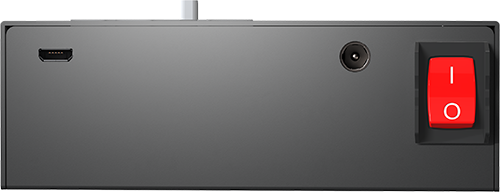

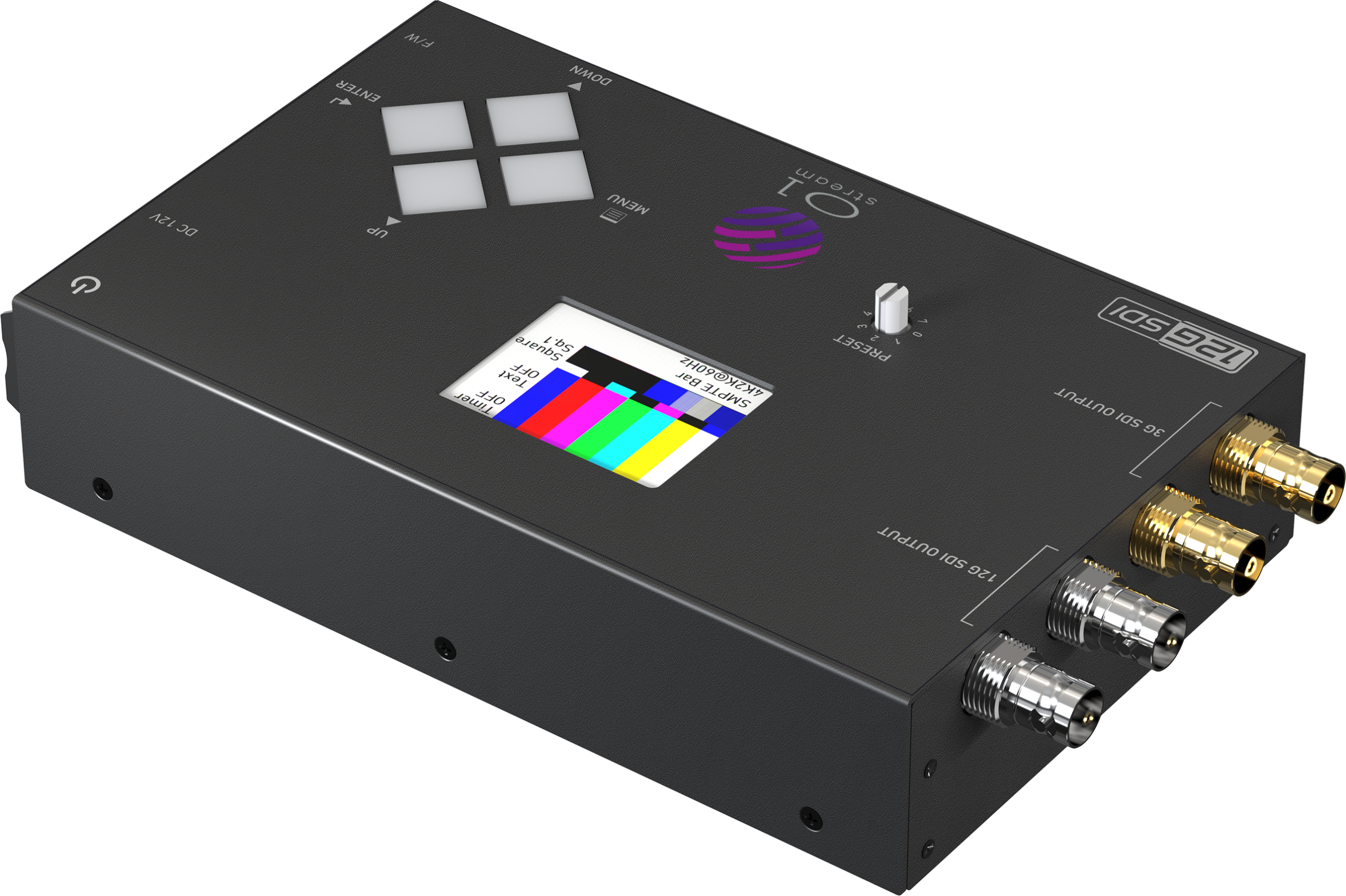

Front View

FEATURES

  • Supported output resolution
    NTSC 525@60, PAL 625@50, 720p@23.98, 720p@50,720p@59.94, 720p@60, 1080i@50, 1080i@59.94, 1080i@60, 1080p@23.97, 1080p@24, 1080p@25, 1080p@29.97, 1080p@30, 1080p@50, 1080p@59.94, 1080p@60, 4K2K@23.97, 4K2K @24, 4K2K @25, 4K2K @29.97, 4K2K @30, 4K2K @50, 4K2K @59.94, 4K2K @60
    Bit Rate: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835 Gbps, 5.94Gbps, 5.934Gbps, 11.88Gbps, 11.868Gbps,270 Mbps
    Color depth: 10bit
  • Video Patterns
    100% Color Bars, Borderline, Random Noise, Check Field, Black, Vertical Lines, Black / White alternate fields, Full Grey / Full White, Black to White Gradient, Random Generator for all still patterns, moving squares White noise, Inverse effect with still pattern, Scrolling Title, Dynamic CZP (Circular Zone Plate (Mono + Color), animated or static phase), Smooth Luma Ramp, New Multi-Burst module, Crosshatch / Convergence Grid, 8-step Gray Steps Staircase, Auto-walk Sequence (cycles through patterns), Bounce Square overlay (selectable colour, size and H/V speed) (see Appendix for illustrations)
  • Save Settings to Memory Option
  • Control
    By LCM, panel buttons & rotary switch
  • Video Output
    SDI output (SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI)
  • Supports Preset Modes (7 user-writable slots + scratch “Save Current” slot)
  • Boot Splash Screen Support
    Two selectable boot splash images (Splash 1 / Splash 2) plus “None” to skip directly to the menu. Splash selection is persisted across power-cycles.
  • USB-CDC Remote Control
    The micro-USB port enumerates as a virtual COM port (CDC) and accepts the full host-application VCmd command set: pattern & format select, audio overlay, timer / running text, dynamic CZP, bounce overlay, presets, safe-area markers and version readback. See the separate PG-303MK Specification document for the wire-level command catalogue.
  • Battery powered for portability, it can extend operation time with a full load up to 20 hours

PACKAGE CONTENTS

  • 1x O1S-AGS11
  • 1x 12V power supply unit
  • 1x User Manual
